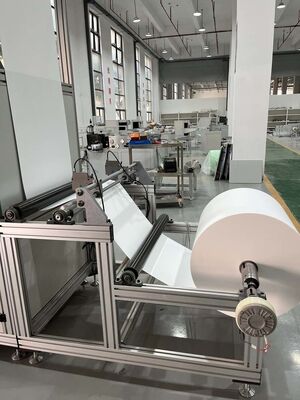

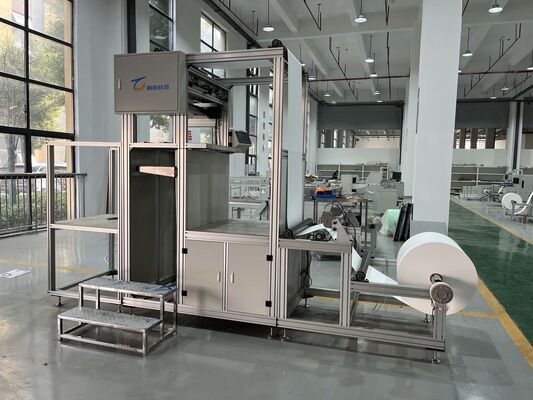

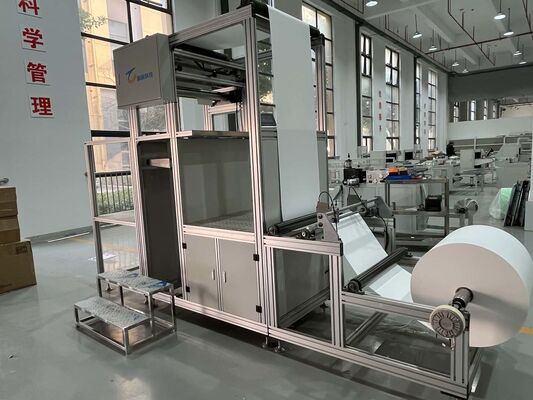

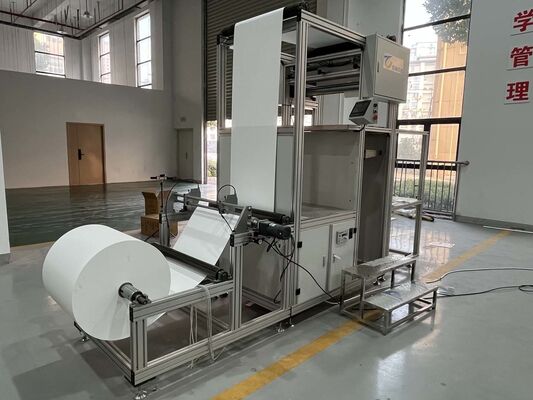

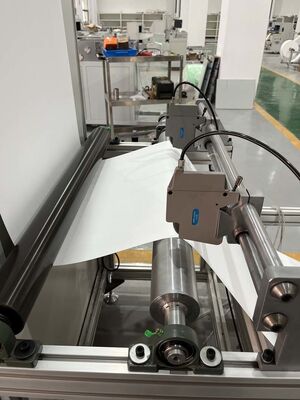

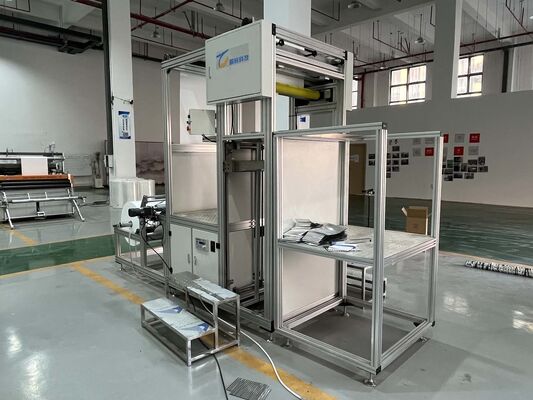

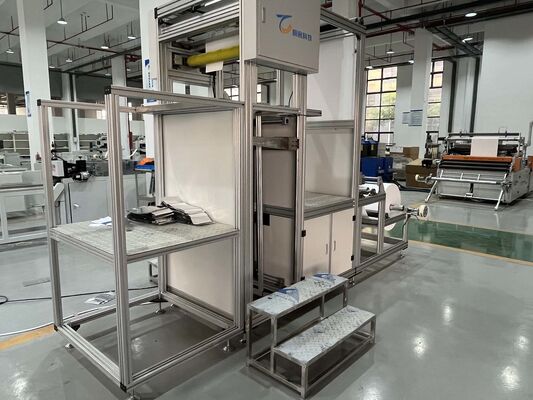

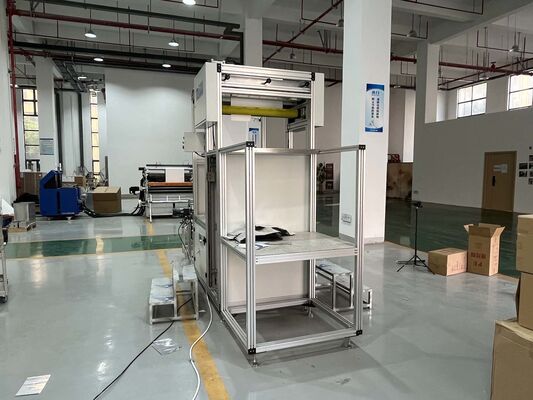

High Quality HEPA Filter Paper Folding and Pleating Partition Machine
The Partitioned Glass Fiber Folding Paper Production Line is a high-precision, automated machine designed for folding and forming partitioned glass fiber filter materials. It provides stable performance, accurate pleating control, and reliable operation, making it ideal for manufacturing HEPA, ULPA, automotive, and industrial air filter elements with partition separators.
This equipment integrates tension control, automatic cutting, embossing, and folding in one continuous process. The folding height and pleat spacing are digitally controlled, ensuring uniform pleats and consistent quality for glass fiber materials.
Product Specifications
| Item |
Specification |
| Production Capacity |
1-10 m/min |
| Folding Height |
5 - 300 mm |
| Folding Spacing |
3 - 30 mm |
| Filter Paper Width |
≤ 700 mm |
| Motor Power |
0.75 kW |
| Power Supply |
220 V / 50 Hz |
| Working Air Pressure |
0.6 MPa |
| Machine Weight |
500 kg |
| Overall Dimensions (L × W × H) |
3560 × 1285 × 2460 mm |
Main Features
- Computer-Controlled Folding System: Folding height and width can be freely set through the digital control interface for precise adjustment.
- Automatic Speed Regulation: Servo motor with PLC system automatically adjusts the speed to suit different material types and production requirements.
- Stable Folding Accuracy: Ensures uniform spacing and flat pleats for partitioned glass fiber media.
- User-Friendly Operation: 7-inch touchscreen for quick parameter setup and process monitoring.
- Durable Construction: Built with a thickened aluminum alloy frame, tension control system, and precision mechanical components.
- Efficient Workflow: Integrates feeding, cutting, embossing, manual corrugation placement, and forming into one streamlined process.
Product Advantages
- Wide folding range: pleat height from 5mm to 300mm
- Servo and PLC integrated control for high precision
- Consistent pleat spacing and reliable glass fiber forming
- Compact structure, stable performance, and easy operation
- Durable build with high-quality components for long service life
Applications
- Automotive air conditioning filters
- Cabin air filters
- Industrial and HVAC filters
- Household air purifier filters
- Nonwoven and pleated filter frames
- Any filter requiring precise four-side edge strip removal
Ideal for filtration processing factories, air filter assembly lines, and precision finishing workshops.
Company Profile
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, and fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.
Production Packaging
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
